LTN101NT07-802 10.1 inch 1024*600 LCD Screen Module

Name: LTN101NT07802 101 inch 1024600 LCD Screen Module
Brand: Samsung
Price: 1 USD

China LTN101NT07-802 10.1 inch 1024*600 LCD Screen Module wholesale

Brand Name : Samsung

Model Number : LTN101NT07-802

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : LTN101NT07-802

Diagonal Size : 10.1"

Resolution : 1024(RGB)×600, WSVGA 117PPI

Active Area : 222.72(W)×125.28(H) mm

Outline Size : 235(W)×143(H)×5.2(D) mm

Viewing Angle : 40/40/10/30 (Typ.)(CR≥10)

Luminance : 200 cd/m² (Typ.)

Designed For : Netbook PC

Signal Interface : LVDS (1 ch, 6-bit), 40 pinsConnector

Contrast Ratio : 300 : 1 (Min.) (TM)

Contact Now

LTN101NT07-802 10.1 inch 1024*600 LCD Screen Module

LTN101NT07-802 LCD Panel Product details :

Brand	Samsung
Model P/N	LTN101NT07-802
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	-
Outline Size	235(W)×143(H)×5.2(D) mm
Brightness	200 cd/m² (Typ.)
Viewing Angle	40/40/10/30 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 45%NTSC
Frequency	60Hz
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	300:1 (Min.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	16 (Typ.)(Tr+Td)
Lamp Type	2 strings WLED, With LED Driver
Touch Screen	Without
Application	Netbook PC
Signal Interface	LVDS (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LTN101NT07-802 10.1 inch 1024*600 LCD Screen Module

LTN101NT07-802 LCD Screen Payment :

Payment Methods: We accept payments through Alipay, Credit card, bank transfer, Western Union, Moneybooker, and other online payment platforms. You can choose the method that best suits your preferences and convenience.

Payment Deadline: Payment must be completed within 3 days of placing your order. This ensures timely processing and delivery of your purchase.

Checkout Process: If you encounter any difficulties during the checkout process after the auction closes, we kindly ask for your patience. Sometimes, delays may occur due to technical reasons. Please retry the payment process after waiting for a few minutes. Remember, payments must still be finalized within the 3-day deadline.

LTN101NT07-802 LCD Screen note :

1. Is the LCD model searched by the search engine consistent with the one you need to buy? Some models look similar, but in fact there will be one or two letters or numbers that are different, which will lead to the difference between what you buy and what you actually need. In addition, there are a few LCD screens of the same model, which will have several LCD interfaces. So you must carefully compare the LCD model, LCD interface and LCD bracket.

2. Many buyers can't tell whether they need to buy a separate LCD screen or a LCD assembly, resulting in many buyers choosing the wrong products. But before you buy a LCD screen, please try to separate your LCD screen from the cover in front of the notebook. If you can easily separate it, you can buy a LCD screen separately. If it is difficult to separate, it is likely to be full of glue. You need to go to a professional maintenance site for freeze separation. I suggest you buy LCD assembly

3. Because there are a wide variety of LCD models, many models are compatible with each other, so all LCD screens in my store are sent according to the general compatible models selected according to the inventory. It is not guaranteed to send the same model, so please pay attention. If you need a special model, you must communicate with customer service to confirm before purchasing.

LTN101NT07-802 LCD Panel Shipping and Package :

LTN101NT07-802 LCD screen possible purchase groups:

We are pleased to offer you a bundle option with the LTN101NT07-802 LCD display. We would like to inform you that our shipping charges are non-negotiable. If these conditions do not apply to you, we recommend that you do not bid. These costs include not only postage costs but also administrative costs, miscellaneous supplies, handling costs and VAT.

We assure you that our P&P pricing includes postage, padded envelopes and administration fees. If you do not agree to these administrative fees, we kindly invite you not to purchase.

Thank you very much for your understanding and cooperation. If you have any questions or concerns, please feel free to contact us. We are here to help you.

LTN101NT07-802 LCD Panel FAQ :

Q: If I order LTN101NT07-802 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of LTN101NT07-802 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of LTN101NT07-802 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my order of LTN101NT07-802 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

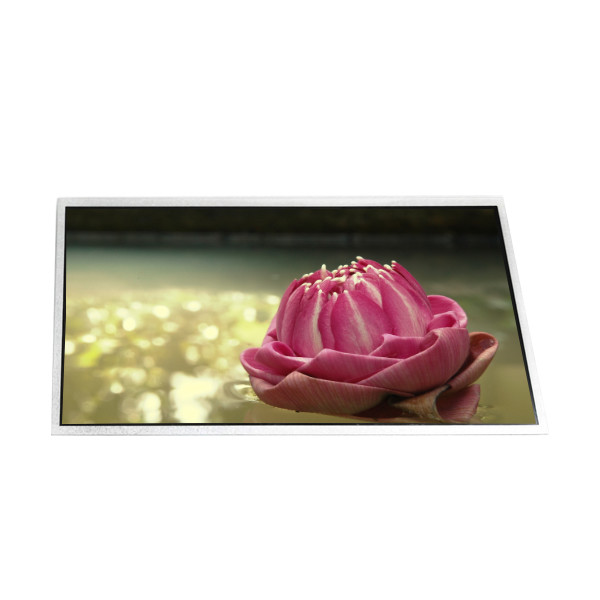

LTN101NT07-802 10.1 inch 1024*600 LCD Screen Module Images
